How to connect external SQL clients to Amorphic?

info

• Follow the steps mentioned below.
• Total time taken for this task: 30 Minutes.
• Pre-requisites: User registration is completed, logged in to Amorphic and role switched

Tidbits

• Amorphic has a switch DWHPublicAccess. This can be turned on or off, depending on the company's security policy.
• SQL Clients can be connected only if DWHPublicAccess is turned on.

Download and install 'SQL Workbench'

• Click here and click on Downloads from left-side menu.
• Click on the link Generic package for all systems including all optional libraries (sha1).
• Unzip the archive into a directory of your choice. Apart from that, no special installation procedure is needed. For any specific configurations, click here
• For Mac, Click on Creating a macOS executable and follow instructions.

Download Redshift Driver

• Click here to go to Redhift JDBC drivers page.
• Click on the link JDBC 4.2–compatible driver (without the AWS SDK) and driver dependent libraries for AWS SDK files.
• Unzip the archive into a directory of your choice.

Run SQL Workbench and create connection for Redshift

• Double click SQLWorkbench64.exe in windows to start the application.
• Click on Create a new connection profile.
• Rename New Profile to Amorphic-Redshift-Connection.
• Click on Manage Drivers at the bottom left corner.
• Click on create new entry icon🗎.
• Change New driver name to Amazon Redshift.
• Click on Select the JAR file(s) that are needed for the JDBC driver.
• Select all the JAR files from the Redshift JDBC driver folder as shown below. Click OK.

• Click on Driver's dropdown list to select Amazon Redshift driver.

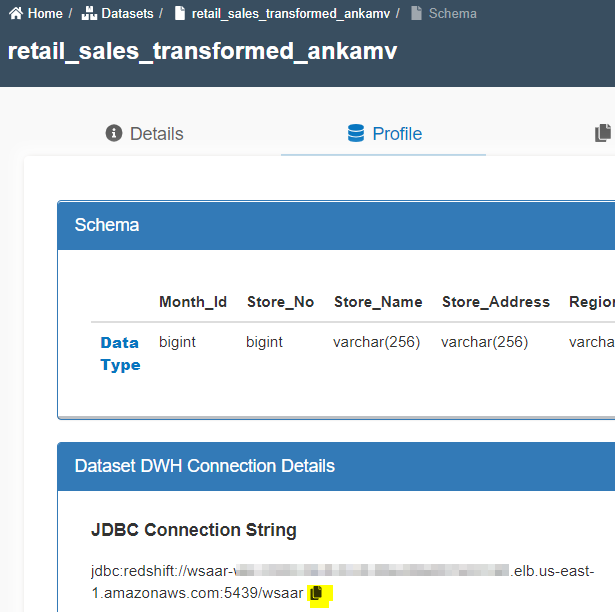

• Go to Profile tab of any Amorphic dataset with Redshift as a Target Location.
• Copy the JDBC connection string as shown below.

• Paste it in the URL text box of SQL Workbench connection profile.
• Get your username and password from 👤 icon at top right corner --> 'Profile & Settings'.

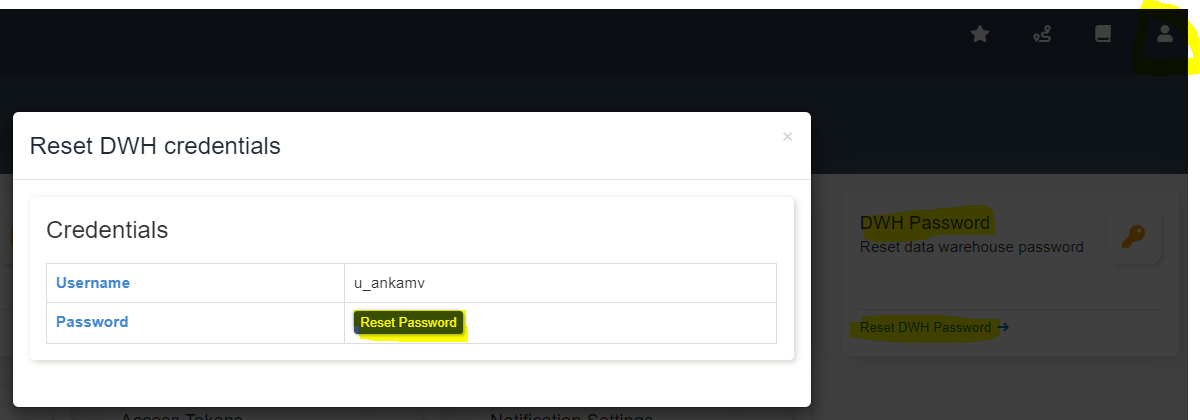

• Click on Reset DWH Password as shown below.
• Paste username and password in SQL Workbench connection profile.
• Click on save 💾 icon.
• Click on Test. You must get `Connection to jdbc:redshift://... successful' message.
• Click OK to get into the SQL Workbench explorer.
• You may expand workshop schema and table on the left side box. You will see all amorphic datasets as tables. But, you will be able to query only those datasets with Redshift as target.
• Write a sample SQL and click on execute.

tip

Explore other features of SQL workbench now.
