Ingestion from Kinesis Stream to Amorphic Dataset

info

• Follow the steps mentioned below.
• Total time taken for this task: 60 Minutes.
• Pre-requisites: Setup Amorphic and login.

Create a stream

• Click on 'Streams' widget on the home screen or click on INGESTION --> Streams on the left side navigation-bar or you may also click on Navigator on top right corner and search for Streams.
• Click on a ➕ icon at the top right corner.

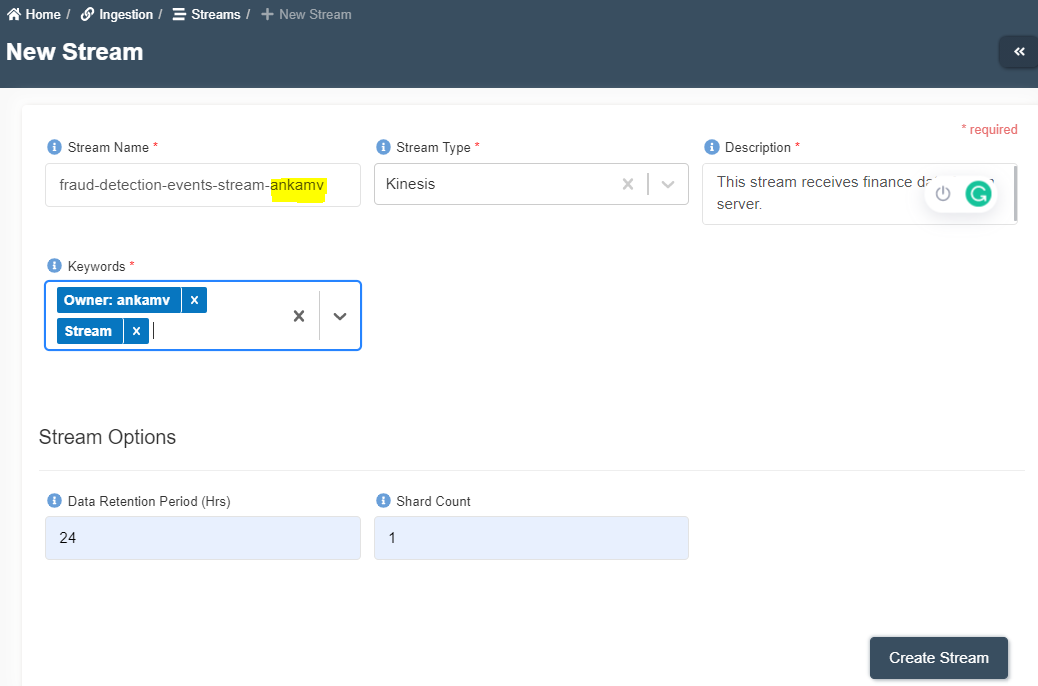

• Enter the following details and click on create connection.

Stream Name: fraud-detection-events-stream-<your-userid>
Stream Type: Kinesis
Description: This stream receives finance data from a server.
Keywords: Stream
Data Retention Period (Hrs): 24
Shard Count: 1  (One shard provides a capacity of 1MB/sec data input and 2MB/sec data output.)

• Check the status on details page. Click on 🔄 to refresh the status. Status will change from creating to active.

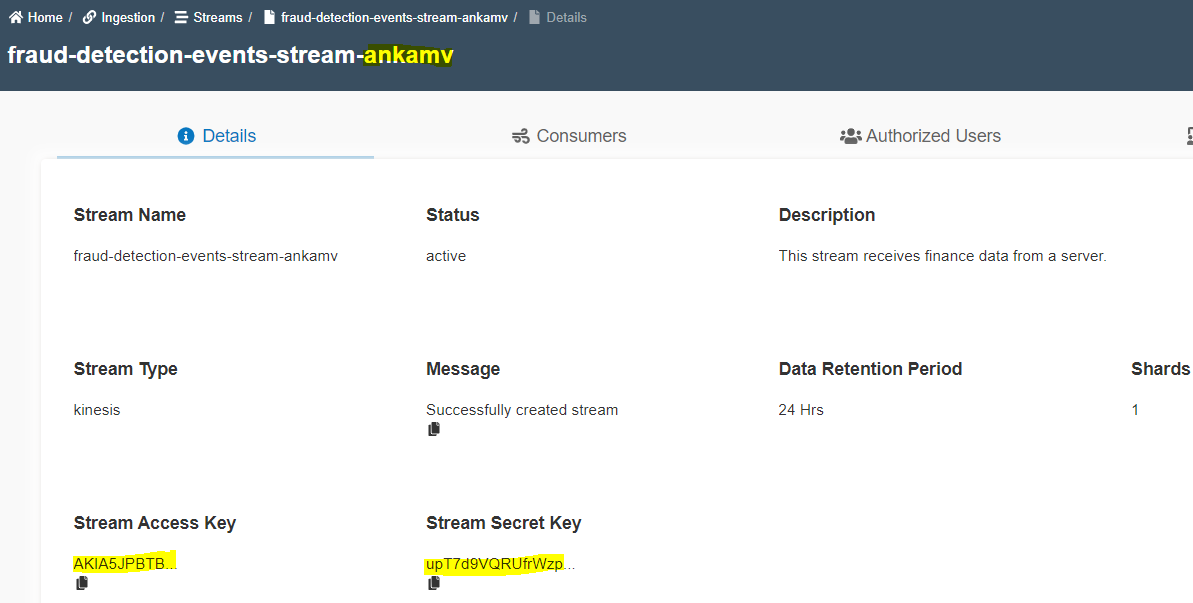

• Once the stream is created, Stream Access Key and Stream Secret Key are available as shown below.

Create a consumer

• Click on Consumers tab.
• Click on a ➕ icon at the top right corner.

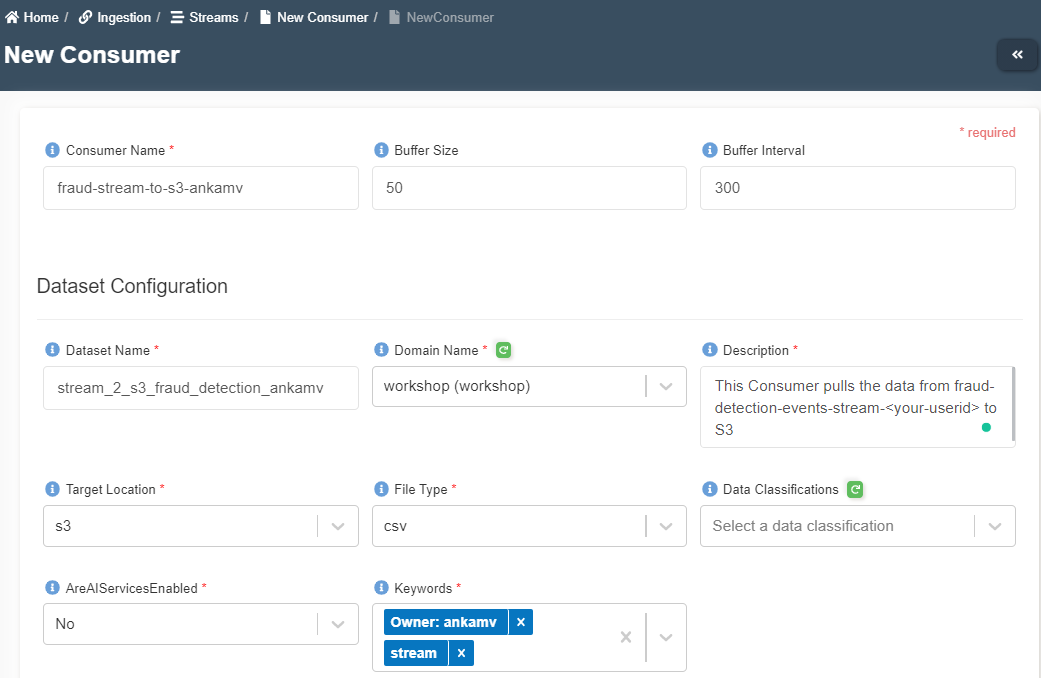

• Enter the following details and click on create consumer.

Consumer Name: fraud-stream-to-s3-<your_userid>
Buffer Size: 50
Buffer Interval: 300
Dataset Name: stream_2_s3_fraud_detection_<your_userid>
Domain Name: workshop
Description: This Consumer pulls the data from fraud-detection-events-stream-<your-userid> to S3
Target Location: S3
File Type: csv
Data Classifications: None
AreAIServicesEnabled: No
Keywords: stream

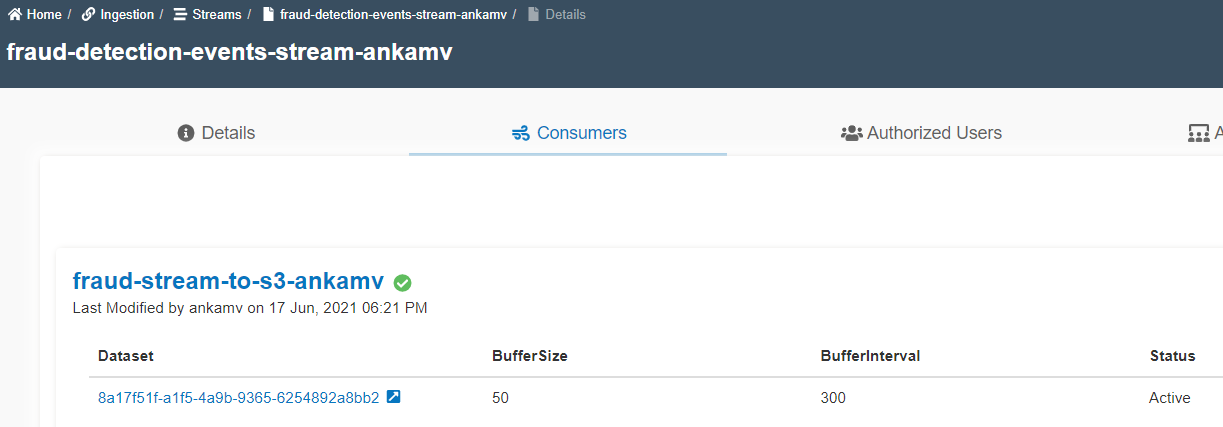

• Once the stream is created, it looks like the following picture in the Consumers tab.

• Click on the Dataset id link to go to the dataset created.

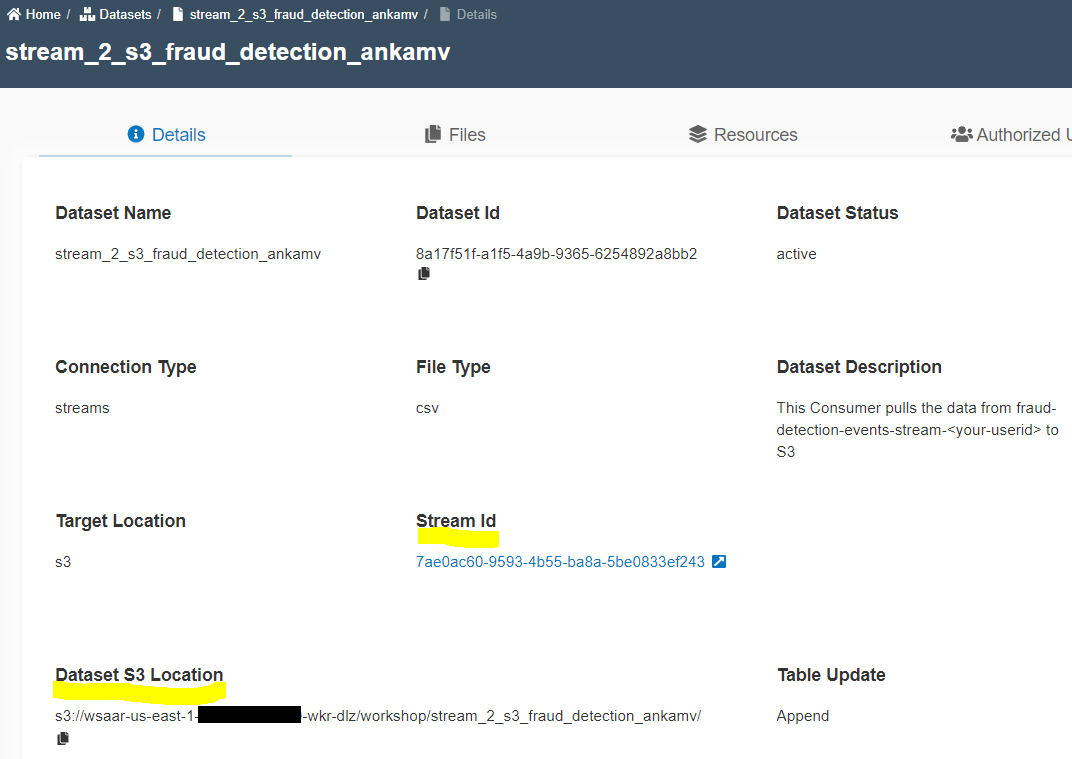

• Notice the Dataset S3 location. It has a link to Stream ID as well.

Create a remote server

• 🛑 If you don't have access to any server, you can skip the following sections and use stream_2_s3_fraud_detection_ankamv as an input dataset in the next 'predict fraud' section.
• 💡 If you already have a server, jump to configure agent. 💡
• Let's create an EC2 instance in your AWS account.
• Login to AWS Account to go to EC2 Service.
• Click on instances --> Launch instances.
• Select the Amazon Linux AMI with ID ami-0d5eff06f840b45e9.
• Select t2.medium or a better instance.
• Select a security group that allows port number 22 (SSH) from your machine.
• Select an existing key pair(pem file) or create a new one.
• Once the server is running, SSH to it using the pem file.

Configure a Kinesis agent

Run the following commands on EC2 instance.

sudo yum install python-pip -y
sudo yum install aws-kinesis-agent -y
sudo python3 -m pip install pandas
sudo mkdir /ingest_data
sudo chown ec2-user:ec2-user /ingest_data

• Edit agent configuration sudo vi /etc/aws-kinesis/agent.json
• Copy paste following configuration after replacing awsAccessKeyId, awsSecretAccessKey, kinesisStream. You can find these details from the stream you've created above.

{
  "cloudwatch.emitMetrics": true,
  "awsAccessKeyId": "Copy and paste your stream's Access Key Id",
  "awsSecretAccessKey": "Copy and paste your stream's Secret Access Key",
  "kinesis.endpoint": "kinesis.us-east-1.amazonaws.com",
  "flows": [
        {
        "filePattern": "/ingest_data/*.csv",
        "kinesisStream": "fraud-detection-events-stream-<your-userid>"
        }
  ]
}

• Create a python program
• Use command vi /home/ec2-user/duplicate_files.py. Copy and paste below lines.

#!/usr/bin/env python3
import datetime
import pandas as pd

def copy_csv(filename):
    import pandas as pd
    df = pd.read_csv('/home/ec2-user/fraud.csv',low_memory=False)
    df_out = df.sample(n = 5)
    df_out.to_csv('/ingest_data/'+datetime.datetime.now().strftime("%Y%m%d-%H%M%S") +'_streams.csv',mode = 'w', index=False)

copy_csv('file.csv')

• Create a schedule to run program every minute.
• Run command crontab -e. Copy and paste below line.

*/1 * * * * /usr/bin/python3 /home/ec2-user/duplicate_files.py

Run agent and monitor status

• Run the following commands to start the agent.

sudo service aws-kinesis-agent start
sudo chkconfig aws-kinesis-agent on

• Click here to download a test file.
• Rename the file as 'FraudTestData01.csv'.
• Run this command locally to copy the test file to the server location.

scp -i your-pem-file.pem FraudTestData01.csv  ec2-user@your-server-ip-address:/home/ec2-user/fraud.csv

Note: If you can't 'scp' this file, copy and paste the content of the file CSV file on server. You may copy a big file 'fraud_test_with_email_ip.csv' from 'finance_fraud_detection_data' dataset if needed.

• Kinesis producer agent status can be watched running the following command on the server.

tail -f /var/log/aws-kinesis-agent/aws-kinesis-agent.log

Check output

• Go to the Amorphic Dataset: stream_2_s3_fraud_detection_<your_userid>. Use the navigator to quickly go to the Dataset page. Press ctrl two times successively and type the dataset name stream_2_s3_fraud_detection_<your_userid>.
• Click on the files tab.
• Click on three dots ⋮ in front of the file to download it.
• Verify the number of records in each file and frequency of file loading on S3.

Congratulations!!!

You have learned how to create a stream, producer and consumer on Amorphic. Now, proceed to 'Predict Fraud' task.
